Device Width Preview in Funnel & Website Builder
Device Width Preview gives you more control when reviewing responsive Funnel and Website pages inside the Chat To Clients CRM builder. Enter an exact pixel width to see how your page looks at different screen sizes while staying within the selected desktop, tablet, or mobile breakpoint. The preview changes only the builder canvas and does not alter saved styles or the published page.
TABLE OF CONTENTS
- What Is Device Width Preview?
- Key Benefits of Device Width Preview
- Prerequisites and Limitations
- Supported Device Width Ranges
- How to Use Device Width Preview
- Frequently Asked Questions
- Related Articles
What Is Device Width Preview?

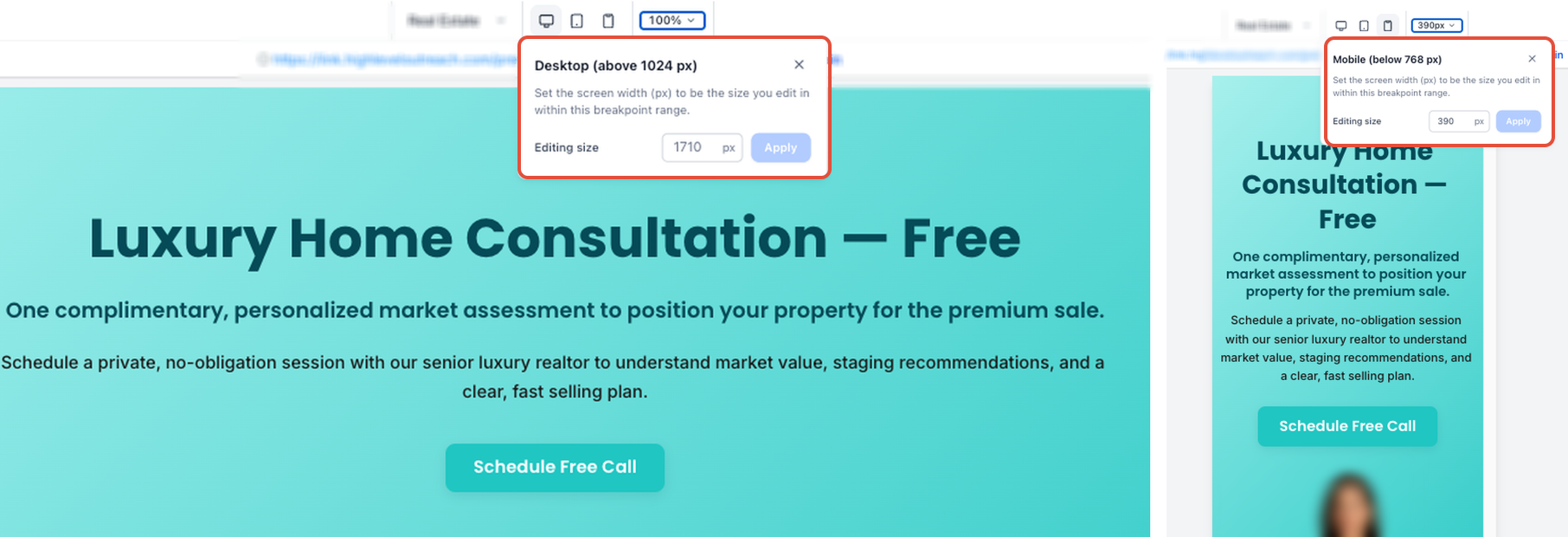

Device Width Preview lets you enter an exact pixel width for the Funnel and Website Builder canvas.
Instead of reviewing your design at only one predefined canvas width, you can test different widths within the selected desktop, tablet, or mobile breakpoint.
The custom width changes only the canvas preview. Your selected device mode still determines which responsive styles you edit and save.
Key Benefits of Device Width Preview
Device Width Preview makes it easier to review responsive layouts across different screen sizes without changing breakpoints or published page styles.
- Exact Preview Widths: Enter a specific pixel width to review your page at the screen size you want to test.
- Breakpoint-Specific Previewing: Test supported widths while remaining within desktop, tablet, or mobile mode.
- Quick Apply: Apply a width by clicking Apply or pressing Enter.
- Inline Validation: Receive feedback when the entered width falls outside the supported range for the selected device mode.
- Easy Reset: Return the canvas to the default preview width for the active device mode.
- Overflow Preview: Horizontally scroll the canvas when the selected width is larger than the available builder workspace.
Prerequisites and Limitations
Device Width Preview is designed for responsive testing inside the builder. Understanding how it interacts with device modes helps prevent preview changes from being confused with responsive styling changes.
Keep the following behaviors in mind:
- Device Width Preview changes only the builder canvas preview.
- It does not create a new responsive breakpoint.
- The selected Desktop, Tablet, or Mobile mode determines which responsive styles are edited and saved.
- Custom preview widths apply only to the current builder session.
- Custom widths reset when you reload the builder or navigate to another page.
- Preview widths are not saved in page data.
- Preview widths do not change the published page.
- Preview widths do not generate or apply separate responsive styles.
- The width you enter must fall within the supported range for the selected device mode.
Supported Device Width Ranges
Each device mode supports a defined range of preview widths. Select the appropriate device mode before entering a custom width.
| Device Mode | Supported Width |
|---|---|
| Desktop | 1025–3000 px |
| Tablet | 768–1024 px |
| Mobile | 320–767 px |
Entering a width outside the selected device mode's range displays inline validation feedback.
How to Use Device Width Preview
Device Width Preview is available directly in the Funnel and Website Builder. Open the page you want to review, select the appropriate responsive mode, and enter the screen width you want to preview.

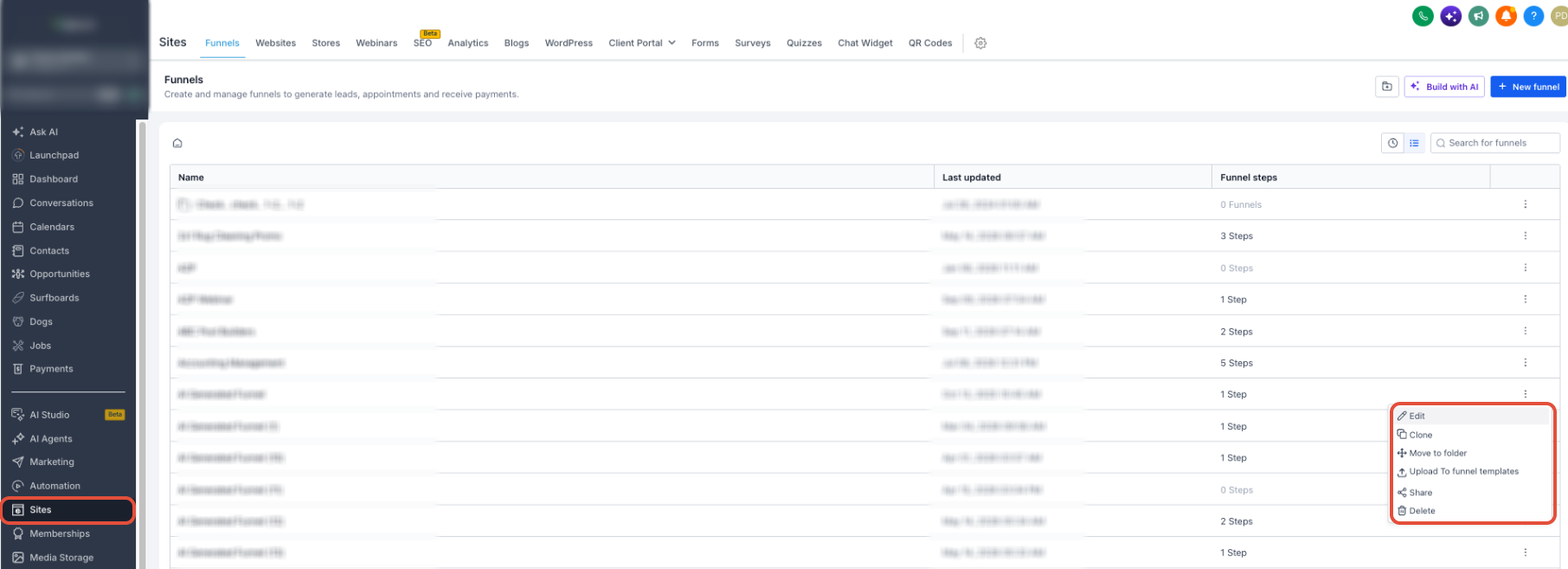

Step 1: Open a Funnel or Website Page
- From the Sub-Account View, select Sites in the left menu.
- Select Funnels or Websites.
- Open the Funnel or Website you want to edit.
- Open the applicable step or page in the builder.
Step 2: Select a Device Mode
Choose the responsive breakpoint you want to review:
- Desktop
- Tablet
- Mobile
The selected device mode determines which responsive styles are active while you edit the page.

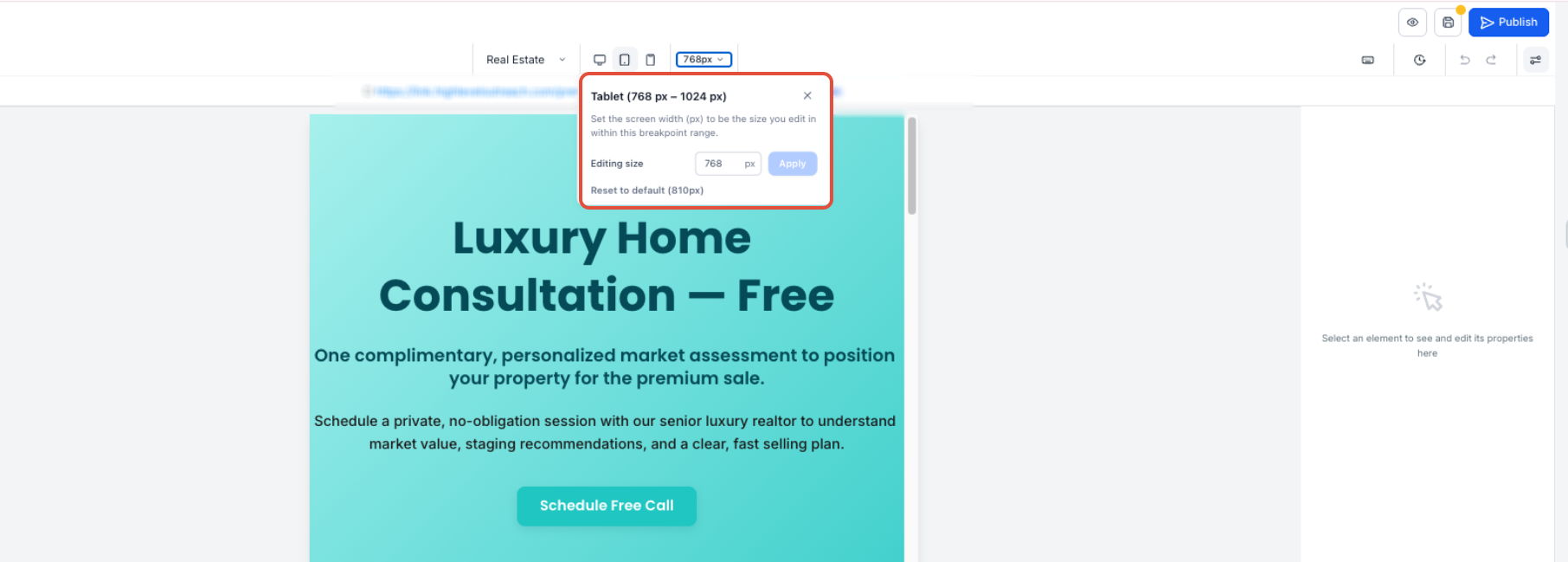

Step 3: Enter a Custom Device Width
Locate the Device Width control beside the device switcher.
Enter a pixel width that falls within the supported range for the selected device mode.
For example, when Tablet is selected, enter a value between 768 px and 1024 px.
Step 4: Apply the Preview Width
Apply the entered width by either:
- Clicking Apply
- Pressing Enter
The builder canvas updates to the requested width while remaining within the selected responsive breakpoint.

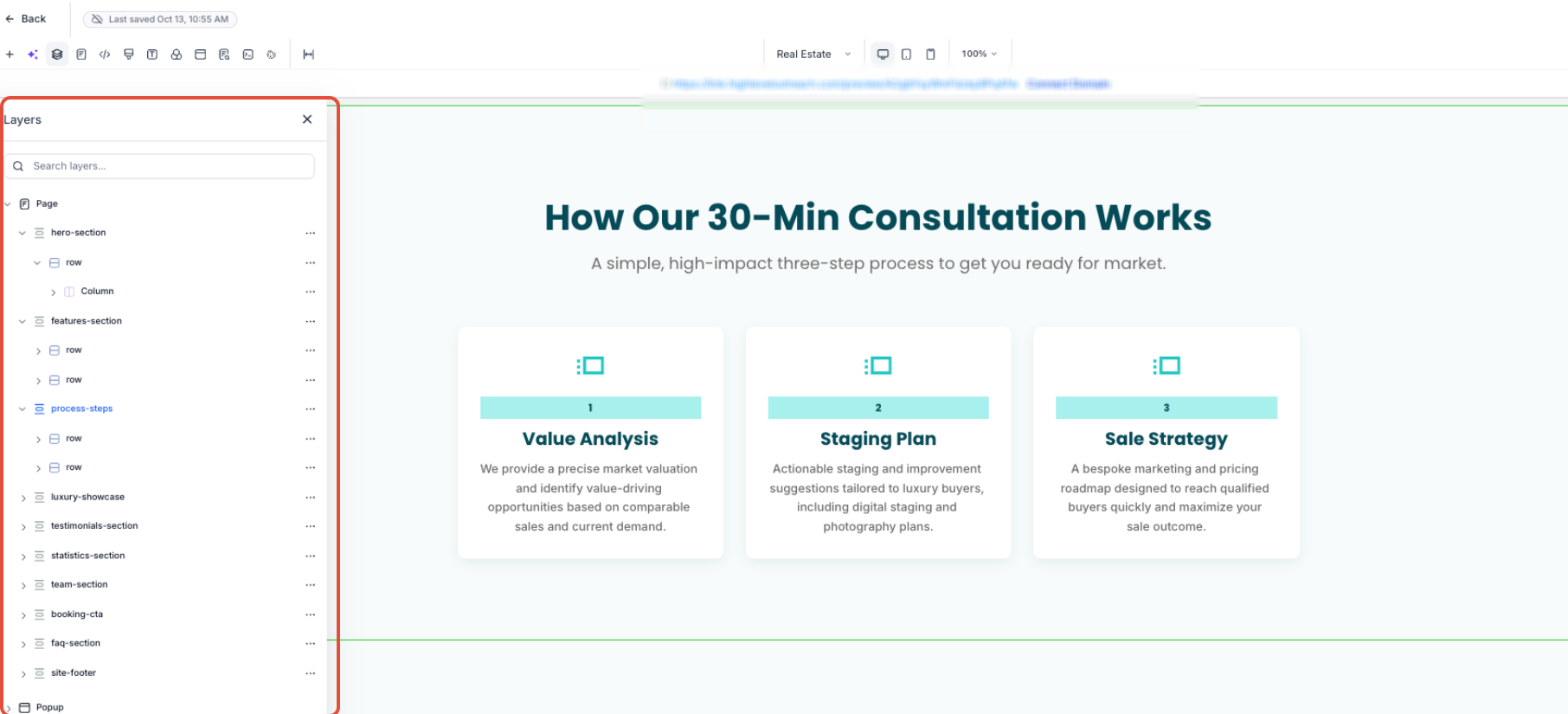

Step 5: Review the Page Layout
Review how your sections, rows, columns, elements, spacing, and content appear at the selected width.
If the canvas becomes wider than the available builder workspace, scroll horizontally to review the full layout.
Step 6: Test Additional Widths
Enter additional supported widths to test how the layout responds across the selected breakpoint.
If you need to test another breakpoint, switch to Desktop, Tablet, or Mobile, then enter a width supported by that mode.
Step 7: Reset the Preview
Use the reset option to return the canvas to the default preview width for the active device mode.
Resetting the preview width does not change the responsive styles you have already edited or saved.
Frequently Asked Questions
Q: Does entering a custom Device Width create a new breakpoint?
No. Device Width changes only the canvas preview. Desktop, tablet, and mobile remain the responsive breakpoints used for editing and saving styles.
Q: Does the custom preview width affect my published page?
No. Preview widths are not saved in page data and do not affect the published page or its generated styles.
Q: Will my custom Device Width be saved for the next time I open the builder?
No. Custom preview widths are session-only and reset after reloading the builder or navigating to another page.
Q: What happens if I enter a width outside the selected breakpoint's range?
The builder displays inline validation feedback. Enter a width within the supported range for the selected device mode.
Q: Can I preview a width that is larger than my available builder workspace?
Yes. When the canvas exceeds the available workspace, you can scroll horizontally to review the full preview.
Q: Does changing the Device Width change which responsive styles I am editing?
No. The selected desktop, tablet, or mobile mode determines which responsive styles are edited and saved.
